retroflt.h File Reference

Abstraction layer header for retro systems. More...

#include <stdarg.h>
#include <marge.h>
#include <retapis.h>
#include <retapii.h>
#include <retapid.h>
#include "retrom2d.h"

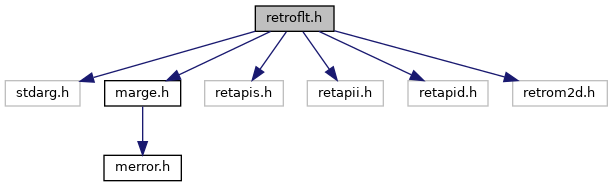

Include dependency graph for retroflt.h:

Go to the source code of this file.

Data Structures
struct	RETROFLAT_INPUT
	Struct passed to retroflat_poll_input() to hold return data. More...
struct	RETROFLAT_3DTEX
struct	RETROFLAT_ARGS
	Struct containing configuration values for a RetroFlat program. More...
struct	RETROFLAT_VIEWPORT
	The viewport data struct. More...
struct	RETROFLAT_STATE
	Global singleton containing state for the current platform. More...

Macros
#define	RETROFLAT_BITMAP_TRACE_LVL   0
#define	RETROINPUT_TRACE_LVL   0
#define	RETROFLAT_COLOR_TABLE(f)
	This macro defines all colors supported by RetroFlat for primative operations, particularly using retroflat_px(). More...
#define	RETROFLAT_COLOR_NULL   (-1)
#define	RETROFLAT_COLORS_SZ   16
#define	RETROFLAT_OK   0x00
	Certain functions return this when there was no problem.
#define	RETROFLAT_ERROR_ENGINE   0x01
#define	RETROFLAT_ERROR_GRAPHICS   0x02
#define	RETROFLAT_ERROR_MOUSE   0x04
#define	RETROFLAT_ERROR_BITMAP   0x08
	Returned if there is a problem loading or locking a ::RETROFLAT_BITMAP struct.
#define	RETROFLAT_ERROR_TIMER   0x0f
#define	RETROFLAT_FLAGS_FILL   0x01
	Flag for retroflat_rect() or retroflat_ellipse(), indicating drawn shape should be filled.
#define	RETROFLAT_FLAGS_OPAQUE   0x01
	Flag for retroflat_create_bitmap() or retroflat_load_bitmap() to create or load a bitmap without transparency.
#define	RETROFLAT_FLAGS_LITERAL_PATH   0x02
	Flag for retroflat_load_bitmap() to not use assets path.
#define	RETROFLAT_FLAGS_BITMAP_SILENT   0x04
	flag for retroflat_load_bitmap() to not show an error dialog if a bitmap fails to load (on supported platforms).
#define	RETROFLAT_FLAGS_ALL_CAPS   0x02
	Flag for retroflat_string() and retroflat_string_sz() to print text in all capital letters. Non-letters are unmodified. More...
#define	RETROFLAT_FLAGS_SCREEN_BUFFER   0x80
	Flag for retroflat_create_bitmap() to create a WinG-backed bitmap. More...
#define	RETROFLAT_MSG_FLAG_TYPE_MASK   0x07
	This mask covers all possible icon/type flags.
#define	RETROFLAT_MSG_FLAG_ERROR   0x01
	This icon/type flag indicates an error. It will try to display messages in an urgent way with a red icon, if possible.
#define	RETROFLAT_MSG_FLAG_INFO   0x02
	This icon/type flag indicates an informational notice. It will try to display messages in a definite way, with an i or speech bubble icon, if possible.
#define	RETROFLAT_MSG_FLAG_WARNING   0x04
	This icon/type flag indicates a condition the user should be aware of. It will try to display messages in an urgent way with a yellow icon, if possible.
#define	RETROFLAT_VDP_FLAG_PXLOCK   0x01
	Flag for RETROFLAT_STATE::vdp_flags indicating the VDP requires RetroFlat to pixel-lock the frame before passing it (almost always true!) More...
#define	RETROFLAT_FLAGS_LOCK   0x08
#define	RETROFLAT_FLAGS_SCREEN_LOCK   0x02
#define	RETROFLAT_FLAGS_BITMAP_RO   0x04
#define	RETROFLAT_INSTANCE_NULL   (0)
	Pass to retroflat_blit_bitmap() instance arg if this is not a sprite (i.e. if it is a background tile).
#define	retroflat_instance_tile(instance)    (instance * -1)
	Declare that a given instance ID is for a tile, rather than a sprite.
#define	RETROFLAT_BITMAP_EXT   "bmp"
	The filename suffix to be appended with a "." to filenames passed to retroflat_load_bitmap(). Is a RetroFlat Compiler Definitions.
#define	RETROFLAT_OPENGL_BPP   32
#define	RETROFLAT_TILE_W   16
#define	RETROFLAT_TILE_W_BITS   4
#define	RETROFLAT_TILE_H   16
#define	RETROFLAT_TILE_H_BITS   4
#define	RETROFLAT_TXP_R   0x00
	Compiler-define-overridable constant indicating the Red value of the transparency color on platforms that support it (mainly Win16/SDL). Is a RetroFlat Compiler Definitions.
#define	RETROFLAT_TXP_G   0x00
	Compiler-define-overridable constant indicating the Green value of the transparency color on platforms that support it (mainly Win16/SDL). Is a RetroFlat Compiler Definitions.
#define	RETROFLAT_TXP_B   0x00
	Compiler-define-overridable constant indicating the Blue value of the transparency color on platforms that support it (mainly Win16/SDL). Is a RetroFlat Compiler Definitions.
#define	RETROFLAT_TXP_PAL_IDX   0
#define	RETROFLAT_DEFAULT_SCREEN_W   320
#define	RETROFLAT_DEFAULT_SCREEN_H   200
#define	retroflat_on_resize(w, h)
#define	RETROFLAT_LINE_THICKNESS   1
	Line drawing thickness (only works on some platforms). Is a RetroFlat Compiler Definitions.
#define	RETROFLAT_PI   3.14159
#define	RETROFLAT_FPS   30
	Target Frames Per Second. More...
#define	retroflat_fps_next()   (1000 / RETROFLAT_FPS)
#define	RETROFLAT_WINDOW_CLASS   "RetroFlatWindowClass"
	Unique window class to use on some platforms (e.g. Win32). Is a RetroFlat Compiler Definitions.
#define	RETROFLAT_WIN_FRAME_TIMER_ID   6001
	Unique ID for the timer that execute frame draws in Win16/Win32. Is a RetroFlat Compiler Definitions.
#define	RETROFLAT_WIN_LOOP_TIMER_ID   6002
	Unique ID for the timer that execute loop ticks in Win16/Win32. Is a RetroFlat Compiler Definitions.
#define	RETROFLAT_MSG_MAX   4096
	Maximum number of characters possible in a message using retroflat_message(). Is a RetroFlat Compiler Definitions.
#define	RETROFLAT_TITLE_MAX   255
#define	RETROFLAT_VDP_ARGS_SZ_MAX   255
#define	RETROFLAT_PATH_SEP   '/'
	The valid path separator on the target platform.
#define	RETROFLAT_BMP_COLORS_SZ_MAX   256
#define	retroflat_wait_for_frame()    (g_retroflat_state->retroflat_flags |= RETROFLAT_FLAGS_WAIT_FOR_FPS)
#define	retroflat_is_waiting_for_frame()
#define	retroflat_buffer_bksp(buffer, buffer_cur, buffer_sz)
	Remove a character from a text buffer before cursor position. More...
#define	retroflat_buffer_insert(c, buffer, buffer_cur, buffer_sz, buffer_mx)
	Insert a character into a text buffer at cursor position. More...
#define	RETROFLAT_INPUT_MOD_SHIFT   0x01
#define	RETROFLAT_INPUT_MOD_ALT   0x02
#define	RETROFLAT_INPUT_MOD_CTRL   0x04
#define	RETROFLAT_INPUT_FORCE_UPPER   0x08
#define	RETROFLAT_DIR4_NONE   (-1)
#define	RETROFLAT_DIR4_NORTH   0
#define	RETROFLAT_DIR4_EAST   1
#define	RETROFLAT_DIR4_SOUTH   2
#define	RETROFLAT_DIR4_WEST   3
#define	RETROFLAT_DIR8_NONE   (-1)
#define	RETROFLAT_DIR8_NORTH   0
#define	RETROFLAT_DIR8_EAST   2
#define	RETROFLAT_DIR8_SOUTH   4
#define	RETROFLAT_DIR8_WEST   6
#define	retroflat_dir4_rotate_cw(dir)    ((dir + 1) % 4)
#define	retroflat_dir8_reverse(dir)    ((dir + 4) % 8)
#define	retroflat_dir8_bounce(dir)    ((dir + 2) % 8)
#define	PXXY_FMT   SIZE_T_FMT
#define	RETRO2D_TRACE_LVL   0
#define	RETROSND_TRACE_LVL   0
#define	RETROSND_REG_TRACE_LVL   0
#define	RETROSND_FLAG_INIT   0x01
	Flag in RETROSND_STATE::flags indicating initialization was successful.
#define	RETROSND_VOICE_BREATH   122
#define	RETROSND_VOICE_SEASHORE   123
#define	RETROSND_VOICE_BIRD_TWEET   124
#define	RETROSND_VOICE_PHONE_RING   125
#define	RETROSND_VOICE_HELICOPTER   126
#define	RETROSND_VOICE_APPLAUSE   127
#define	RETROSND_VOICE_GUNSHOT   128
	Parameter for retrosnd_midi_set_voice() indicating a gunshot sound effect.
#define	RETROSND_CHANNEL_CT   8
#define	retroflat_case_key(key, pad)   case pad: case key:
	Specify cases for a select() on the result of retroflat_poll_input() for keyboard or game pad as available. More...
#define	retroflat_or_key(input, key, pad)    (((input) == (pad)) || ((input) == (key)))
#define	retroflat_system_task()
	Platform-specific task that should be called on every iteration of the generic loop. This prevents having to define a platform-specific loop just to add a single call.
#define	retroflat_screen_colors()   (g_retroflat_state->screen_colors)
#define	retroflat_viewport_world_tile_x()    retroflat_viewport_world_tile_x_generic()
#define	retroflat_viewport_world_tile_y()    retroflat_viewport_world_tile_y_generic()
#define	retroflat_viewport_focus(x1, y1, range, speed)    retroflat_viewport_focus_generic( x1, y1, range, speed )
	Move the viewport in a direction or combination thereof so that it's focusing the given x1/y1 within the given range. More...
#define	retroflat_viewport_screen_x(world_x)    retroflat_viewport_screen_x_generic( world_x )
	Return the screenspace X coordinate at which something at the given world coordinate should be drawn.
#define	retroflat_viewport_screen_y(world_y)    retroflat_viewport_screen_y_generic( world_y )
	Return the screenspace Y coordinate at which something at the given world coordinate should be drawn.
#define	retroflat_viewport_move_x(x)    retroflat_viewport_move_x_generic( x )
#define	retroflat_viewport_move_y(y)    retroflat_viewport_move_y_generic( y )
#define	retroflat_constrain_px(x, y, bmp, retact)
	Ensure x and y (which must be unsigned!) are inside image boundaries. More...
#define	RETROFLAT_COLOR_TABLE_CONSTS(idx, name_l, name_u, r, g, b, cgac, cgad)    extern MAUG_CONST RETROFLAT_COLOR SEG_MCONST RETROFLAT_COLOR_ ## name_u;

Typedefs
typedef int16_t	retroflat_tile_t
	Value for an individual tile in a RETROTILE_LAYER. More...
typedef int8_t	RETROFLAT_COLOR
	Defines an index in the platform-specific color-table.
typedef MERROR_RETVAL(*	retroflat_vdp_proc_t) (struct RETROFLAT_STATE *)
	VDP function called from the VDP library. More...
typedef MERROR_RETVAL(*	retroflat_proc_resize_t) (uint16_t new_w, uint16_t new_h, void *data)
typedef void(*	retroflat_loop_iter) (void *data)
	Prototype for the main loop function passed to retroflat_loop().
typedef int8_t	retroflat_dir4_t
typedef int8_t	retroflat_dir8_t
typedef size_t	retroflat_pxxy_t
	Type used for surface pixel coordinates. More...
typedef maug_ms_t	retroflat_ms_t

Functions
MERROR_RETVAL	retrosnd_init (struct RETROFLAT_ARGS *args)
	Initialize retrosnd engine. More...
void	retrosnd_set_sf_bank (const char *filename_in)
	Set the name of the voice bank filename to use.
void	retrosnd_midi_set_voice (uint8_t channel, uint8_t voice)
void	retrosnd_midi_set_control (uint8_t channel, uint8_t key, uint8_t val)
void	retrosnd_midi_note_on (uint8_t channel, uint8_t pitch, uint8_t vel)
void	retrosnd_midi_note_off (uint8_t channel, uint8_t pitch, uint8_t vel)
MERROR_RETVAL	retrosnd_midi_play_smf (const char *filename)
uint8_t	retrosnd_midi_is_playing_smf ()
void	retrosnd_shutdown ()
MERROR_RETVAL	retroflat_loop (retroflat_loop_iter frame_iter, retroflat_loop_iter loop_iter, void *data)
	This should be called once in the main body of the program in order to enter the main loop. The main loop will continuously call loop_iter with data as an argument until retroflat_quit() is called.
MERROR_RETVAL	retroflat_build_filename_path (const char *filename_in, const char *filename_ext, char *buffer_out, size_t buffer_out_sz, uint8_t flags)
void	retroflat_message (uint8_t flags, const char *title, const char *format,...)
	Display a message in a dialog box and/or on stderr. More...
MERROR_RETVAL	retroflat_init (int argc, char *argv[], struct RETROFLAT_ARGS *args)
	Initialize RetroFlat and its underlying layers. This should be called once at the beginning of the program and should quit if the return value indicates any failures. More...
void	retroflat_shutdown (int retval)
	Deinitialize RetroFlat and its underlying layers. This should be called once at the end of the program, after retroflat_loop(). More...
MERROR_RETVAL	retroflat_vdp_call (const char *proc_name)
	Call a function from the retroflat VDP.
RETROFLAT_IN_KEY	retroflat_repeat_input (RETROFLAT_IN_KEY key_out, struct RETROFLAT_INPUT *input, RETROFLAT_IN_KEY *prev_input, int *prev_delay)
void	retroflat_set_title (const char *format,...)
retroflat_ms_t	retroflat_get_ms ()
uint32_t	retroflat_get_rand ()
char	retroflat_vk_to_ascii (RETROFLAT_IN_KEY k, uint8_t flags)
MERROR_RETVAL	retroflat_load_bitmap (const char *filename, struct RETROFLAT_BITMAP *bmp_out, uint8_t flags)
	Load a bitmap into the given ::RETROFLAT_BITMAP structure if it is available. Bitmaps are subject to the limitations enumerated in RetroFlat Bitmap API. More...
MERROR_RETVAL	retroflat_create_bitmap (size_t w, size_t h, struct RETROFLAT_BITMAP *bmp_out, uint8_t flags)
void	retroflat_destroy_bitmap (struct RETROFLAT_BITMAP *bitmap)
	Unload a bitmap from a ::RETROFLAT_BITMAP struct. The struct, itself, is not freed (in case it is on the stack). More...
MERROR_RETVAL	retroflat_blit_bitmap (struct RETROFLAT_BITMAP *target, struct RETROFLAT_BITMAP *src, size_t s_x, size_t s_y, int16_t d_x, int16_t d_y, size_t w, size_t h, int16_t instance)
	Blit the contents of a ::RETROFLAT_BITMAP onto another ::RETROFLAT_BITMAP. More...
MERROR_RETVAL	retroflat_draw_lock (struct RETROFLAT_BITMAP *bmp)
	Lock a bitmap for drawing. This will be done automatically if necessary and not called explicitly, but performance should improve if done before a batch of drawing operations. More...
MERROR_RETVAL	retroflat_draw_release (struct RETROFLAT_BITMAP *bmp)
void	retroflat_px (struct RETROFLAT_BITMAP *target, const RETROFLAT_COLOR color, size_t x, size_t y, uint8_t flags)
void	retroflat_rect (struct RETROFLAT_BITMAP *target, const RETROFLAT_COLOR color, int16_t x, int16_t y, int16_t w, int16_t h, uint8_t flags)
	Draw a rectangle onto the target ::RETROFLAT_BITMAP. More...
void	retroflat_ellipse (struct RETROFLAT_BITMAP *target, const RETROFLAT_COLOR color, int16_t x, int16_t y, int16_t w, int16_t h, uint8_t flags)
	Draw an ellipse onto the target ::RETROFLAT_BITMAP. More...
void	retroflat_line (struct RETROFLAT_BITMAP *target, const RETROFLAT_COLOR color, int16_t x1, int16_t y1, int16_t x2, int16_t y2, uint8_t flags)
	Draw a straight line onto the target ::RETROFLAT_BITMAP. More...
void	retroflat_cursor (struct RETROFLAT_BITMAP *target, uint8_t flags)
void	retroflat_string_sz (struct RETROFLAT_BITMAP *target, const char *str, size_t str_sz, const char *font_str, size_t *w_out, size_t *h_out, uint8_t flags)
	Get the size in pixels of a text string when drawn with a given font by retroflat_string(). More...
void	retroflat_string (struct RETROFLAT_BITMAP *target, const RETROFLAT_COLOR color, const char *str, int str_sz, const char *font_str, int16_t x_orig, int16_t y_orig, uint8_t flags)
	Draw a text string at the specified location in the specified font and color on the target ::RETROFLAT_BITMAP. More...
void	retroflat_get_palette (uint8_t idx, uint32_t *rgb)
MERROR_RETVAL	retroflat_set_palette (uint8_t idx, uint32_t rgb)
void	retroflat_set_proc_resize (retroflat_proc_resize_t on_resize_in, void *data_in)
	Set the procedure to call when the window is resized (on platforms that support resizing). More...
void	retroflat_resize_v ()
	Platform-specific function to resize virtual screen to match physical window size.
RETROFLAT_IN_KEY	retroflat_poll_input (struct RETROFLAT_INPUT *input)
	Poll input devices (keyboard/mouse) and return the latest event. More...

Variables
MAUG_CONST int16_t SEG_MCONST	gc_retroflat_offsets8_x [8]
MAUG_CONST int16_t SEG_MCONST	gc_retroflat_offsets8_y [8]
MAUG_CONST int16_t SEG_MCONST	gc_retroflat_offsets4_x [4]
MAUG_CONST int16_t SEG_MCONST	gc_retroflat_offsets4_y [4]
MAUG_CONST char *SEG_MCONST	gc_retroflat_color_names []
struct RETROFLAT_STATE *SEG_MGLOBAL	g_retroflat_state

Detailed Description

Abstraction layer header for retro systems.

RetroFlat is a compatibility layer for making graphical programs that work on Win16 (32-bit via OpenWatcom's Win386), MS-DOS (32-bit via DOS/32a or DOS4GW via Allegro), and possibly other platforms in the future.

To use, define RETROFLT_C before including this header from your main.c.

You may include this header in other .c files, as well, but RETROFLT_C should ONLY be declared ONCE in the entire program.

maug.h should also be included before this header.
