Functions and structures for working with tilemaps/grids. More...

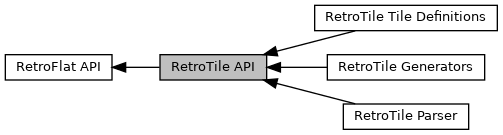

Collaboration diagram for RetroTile API:

Modules
	RetroTile Tile Definitions

	RetroTile Parser

	RetroTile Generators
	Tools for procedurally generating tilemaps.

Data Structures
struct	RETROTILE_LAYER

struct	RETROTILE_COORDS
	This is not currently used for anything, but is provided as a a convenience for game logic. More...

struct	RETROTILE
	A struct representing a tilemap. More...

struct	RETROTILE_DATA_DS
	Internal data structure used by retrotile_gen_diamond_square_iter(). More...

struct	RETROTILE_DATA_BORDER

Macros
#define	RETROTILE_PRESENT

#define	RETROTILE_TRACE_CHARS 0

#define	RETROTILE_NAME_SZ_MAX 10
	Maximum number of chars in a RETROTILE::name.

#define	RETROTILE_PROP_NAME_SZ_MAX 10
	Maximum number of chars in a parsed property name.

#define	RETROTILE_TILE_SCALE_DEFAULT 1.0f
	Default value for RETROTILE::tile_scale.

#define	RETROTILE_TRACE_LVL 0
	If defined, bring debug printf statements up to this level.

#define	RETROTILE_VORONOI_DEFAULT_SPB 8

#define	RETROTILE_VORONOI_DEFAULT_DRIFT 4

#define	retrotile_mstate_name(state) state

#define	RETROTILE_CLASS_TABLE(f)

#define	retrotile_get_tile(tilemap, layer, x, y) (retrotile_get_tiles_p( layer )[((y) * (tilemap)->tiles_w) + (x)])

#define	retrotile_set_tile(tilemap, layer, x, y, new_val) (retrotile_get_tiles_p( layer )[((y) * (tilemap)->tiles_w) + (x)])

#define	retrotile_get_tiles_p(layer)

#define	retrotile_clear_tiles(t, layer, i)

#define	RETROTILE_PARSER_MSTATE_TABLE_CONST(name, idx, tokn, parent, m) extern MAUG_CONST uint8_t SEG_MCONST name;

#define	RETROTILE_CLASS_TABLE_CONSTS(A, a, i) extern MAUG_CONST uint8_t SEG_MCONST RETROTILE_CLASS_ ## A;

Typedefs
typedef int16_t	retroflat_tile_t
	Value for an individual tile in a RETROTILE_LAYER. More...

typedef int16_t	retrotile_coord_t

Functions
struct RETROTILE_LAYER *	retrotile_get_layer_p (struct RETROTILE *tilemap, uint32_t layer_idx)

MERROR_RETVAL	retrotile_alloc (MAUG_MHANDLE p_tilemap_h, size_t w, size_t h, size_t layers_count, const char tilemap_name, const char *tileset_name)

void	retrotile_format_asset_path (retroflat_asset_path path_out, const char afile, struct RETROTILE_PARSER parser)

MERROR_RETVAL	retrotile_clear_refresh (retroflat_pxxy_t y_max)

MERROR_RETVAL	retrotile_topdown_draw (struct RETROFLAT_BITMAP target, struct RETROTILE t, struct MDATA_VECTOR *t_defs)

Detailed Description

Functions and structures for working with tilemaps/grids.

Macro Definition Documentation

#define RETROTILE_CLASS_TABLE ( f )

Value:

   f( TILE,    tile,    0 ) \
   f( MOBILE,  mobile,  1 ) \
   f( WARP,    warp,    2 ) \
   f( ITEM,    item,    3 ) \
   f( CROP,    crop,    4 )

#define retrotile_clear_tiles	(	t,
		layer,
		i
	)

Value:

memset( retrotile_get_tiles_p( layer ), -1, \

(t)->tiles_w * (t)->tiles_h * sizeof( retroflat_tile_t ) )

int16_t retroflat_tile_t

Value for an individual tile in a RETROTILE_LAYER.

Definition: retroflt.h:19

#define retrotile_get_tiles_p ( layer )

Value:

((retroflat_tile_t*)(((uint8_t*)(layer)) + \

sizeof( struct RETROTILE_LAYER )))

Definition: retrotil.h:198

Value for an individual tile in a RETROTILE_LAYER.

This is defined early on so that it can be used in some other modules.
